Overfitting, the Bias-Variance tradeoff, Regularization, and Double Descent¶

Preamble: Run the cells below to import the necessary Python packages

These notes are modified and extended from notes by Volodymyr Kuleshov at Cornell Tech. These have been modified from the originals to segue into a the physics course, and to motivate double-descent

In [3]:
## Preamble / required packages
import numpy as np
np.random.seed(0)

## Import local plotting functions and in-notebook display functions
import matplotlib.pyplot as plt
from IPython.display import Image, display
%matplotlib inline

import warnings
## Comment this out to activate warnings
warnings.filterwarnings('ignore')

Overfitting and Underfitting¶

We have seen a number of supervised learning algorithms.

Next, let's look at why they work (and why sometimes they don't).

In [ ]:

Polynomial Regression¶

Recall that in supervised learning approaches we fit a linear model to a dataset $X \in \mathbb{R}^{N_\text{data} \times N_\text{features}}$ and a vector of labels $y \in \mathbb{R}^{N_\text{data}}$

We will study this problem in more detail in this notebook, but we will focus on a minimal one-dimensional dataset for simplicity, in which case $X \in \mathbb{R}^{N_\text{data} \times 1}$ and $y \in \mathbb{R}^{N_\text{data}}$

In [5]:
true_fn = lambda X: np.cos(1.5 * np.pi * X)

np.random.seed(0)
n_samples = 30
X_train = np.sort(np.random.rand(n_samples))
y_train = true_fn(X_train) + np.random.randn(n_samples) * 0.1

X_test = np.linspace(0, 1, 100)
y_test = true_fn(X_test)


plt.plot(X_test, true_fn(X_test), 'k', label="True Values")
plt.plot(X_train, y_train, '.b', markersize=10, label="Observed Data Values")
plt.legend(loc="best")

plt.xlabel("X")
plt.ylabel("y")
Out[5]:
Text(0, 0.5, 'y')
No description has been provided for this image

One option to find the relationship between the features and the labels is to fit a linear model of the form

$$ \mathbf{y} = \boldsymbol{\theta}^\top \mathbf{X} $$

where $\boldsymbol{\theta} \in \mathbb{R}^{1}$ is a scalar, because each data point has only one feature, and we want to map it to one regression target value.

Bias as a feature in linear regression¶

You might recall that univariate linear regression models can be written as

$$ \mathbf{y} = \theta \mathbf{X} + b $$

where $\mathbf{X}, \mathbf{y} \in \mathbb{R}^{N_\text{data}}$ and all model weights are scalars. We can "lift" the dimensionality of the feature space by adding a constant feature to the data, so that the model becomes

$$ \mathbf{y} = \boldsymbol{\theta}^\top \mathbf{X} $$

where $\boldsymbol{\theta} \in \mathbb{R}^{2}$ and $\mathbf{X} \in \mathbb{R}^{N_\text{data} \times 2}$, with the first column of $\mathbf{X}$ being all ones.

In [141]:
from sklearn.linear_model import LinearRegression

# Create a linear regression model
model = LinearRegression()

# Train the model
model.fit(X_train[:, None], y_train)

# Predict the values on train and test
y_pred_train = model.predict(X_train[:, None])
y_pred_test = model.predict(X_test[:, None])

plt.plot(X_train, y_train, '.b', label="Train Data Values")
plt.plot(X_test, y_test, 'k', label="Test Data Values")
plt.plot(X_train, y_pred_train, '.r', label="Predicted Values (Train)")
plt.plot(X_test, y_pred_test, 'r', label="Predicted Values (Test)")

plt.legend(loc="best")
Out[141]:
<matplotlib.legend.Legend at 0x179b3ff90>
No description has been provided for this image

Nonlinear features are more expressive¶

What if we wanted to fit a polynomial instead? We could instead solve a polynomial regression problem of the form

$$ \mathbf{y} = \boldsymbol{\theta}^\top \Phi(\mathbf{X}) $$

where $\Phi(\mathbf{X})$ is a matrix of features that are polynomial transformations of the original features, $$ \Phi(\mathbf{X}) = \begin{bmatrix} 1 & x_{11} & x_{12} & \dots & x_{1d} & x_{11}^2 & x_{12}^2 & \dots & x_{1d}^2 & \dots \\ 1 & x_{21} & x_{22} & \dots & x_{2d} & x_{21}^2 & x_{22}^2 & \dots & x_{2d}^2 & \dots \\ \vdots & \vdots & \vdots & \ddots & \vdots & \vdots & \vdots & \ddots & \vdots & \ddots \\ 1 & x_{n1} & x_{n2} & \dots & x_{nd} & x_{n1}^2 & x_{n2}^2 & \dots & x_{nd}^2 & \dots \\ \end{bmatrix} $$

Thus, in this lifted feature space the labels remain the same $\mathbf{y} \in \mathbb{R}^{N_\text{data}}$, but the transformed features $\Phi(\mathbf{X}) \in \mathbb{R}^{N_\text{data} \times N_\text{features}}$ where $N_\text{features} > 1$. As a result, the model weights $\boldsymbol{\theta} \in \mathbb{R}^{N_\text{features}}$.

Geature-wise transformations are sometimes called basis functions or kernels. For a single datapoint, the resulting regression problem has the form

$$ f_\theta(x) := \theta^\top \phi(x) = \sum_{j=0}^p \theta_j x^j $$ that is linear in $\theta$ but non-linear in $x$ because the features $$\phi(x) = [1\; x\; \ldots\; x^p]$$ are non-linear. Using these features, we can fit any polynomial of degree $p$ by first transforming the features and then fitting a linear model using standard methods

Polynomial Regression¶

  • Instead of directly performing nonlinear transformations of the input feautres, we can use the PolynomialFeatures class from sklearn.preprocessing to compute the lifted feature matrix for us. Because it's built into scikit-learn, it automatically has the right API to be used within a standard machine learning model

  • After transforming the input data, we will pass the transformed data to scikit-learn's LinearRegression or Ridge classes to fit a linear model to the transformed data

  • scitkit-learn allows us to combine these operations into a single combined model with the Pipeline class.

  • We will score the quality of the model using the $R^2$ score on both the training and test data

In [143]:
from sklearn.pipeline import Pipeline
from sklearn.preprocessing import PolynomialFeatures
from sklearn.linear_model import LinearRegression

degrees = [1, 2, 3]
plt.figure(figsize=(14, 5))
for i in range(len(degrees)):
    ax = plt.subplot(1, len(degrees), i + 1)

    polynomial_features = PolynomialFeatures(degree=degrees[i])
    linear_regression = LinearRegression()
    pipeline = Pipeline([("pf", polynomial_features), ("lr", linear_regression)])
    pipeline.fit(X_train[:, None], y_train)

    ax.plot(X_test, y_test, color='k', label="Test Values")
    ax.plot(X_test, pipeline.predict(X_test[:, None]), label="Test Predictions")
    ax.plot(X_train, y_train, '.b', markersize=10, label="Train Values")
    print(f"Train R2 Score (Degree {degrees[i]}): {pipeline.score(X_train[:, None], y_train)}")
    print(f"Test R2 Score (Degree {degrees[i]}): {pipeline.score(X_test[:, None], y_test)}")

    ax.set_xlim((0, 1))
    ax.set_ylim((-2, 2))
    ax.legend(loc="best")
    ax.set_title(f"Polynomial Degree {degrees[i]}")

Train R2 Score (Degree 1): 0.473679628749485
Test R2 Score (Degree 1): 0.5796351746300188
Train R2 Score (Degree 2): 0.93080078598832
Test R2 Score (Degree 2): 0.9189645762039556
Train R2 Score (Degree 3): 0.9709160115202458
Test R2 Score (Degree 3): 0.9911295021744566
No description has been provided for this image
In [ ]:

Why not always lift the features?¶

Diminishing returns of the Vandermonde matrix¶

The Vandermonde matrix $\Phi \in \mathbb{R}^{N \times p}$ is a matrix whose rows are the features $\phi(x)$ for a set of points $x_1,\ldots,x_n$. For example, if we have $n=3$ points $x_1=1$, $x_2=2$, $x_3=3$, and $p=2$, then the Vandermonde matrix is $$ \begin{bmatrix} 1 & 1 & 1 \\ 1 & 2 & 4 \\ 1 & 3 & 9 \end{bmatrix} $$

Below, we plot the Vandermonde matrix for $N_\text{data}=3$ points and $p=0,2,4,9$

In [144]:
xx = np.array([1, 2, 3])

print(np.vander(xx, 2, increasing=True), end='\n\n')

print(np.vander(xx, 3, increasing=True), end='\n\n')

print(np.vander(xx, 5, increasing=True), end='\n\n')

print(np.vander(xx, 10, increasing=True), end='\n\n')

[[1 1]
 [1 2]
 [1 3]]

[[1 1 1]
 [1 2 4]
 [1 3 9]]

[[ 1  1  1  1  1]
 [ 1  2  4  8 16]
 [ 1  3  9 27 81]]

[[    1     1     1     1     1     1     1     1     1     1]
 [    1     2     4     8    16    32    64   128   256   512]
 [    1     3     9    27    81   243   729  2187  6561 19683]]

Solving yet another least-squares problem¶

In principle, we can simply fit a polynomial of degree $p$ to a set of points $(x_1,y_1),\ldots,(x_n,y_n)$ by solving the linear system $\Phi\theta = y$.

$$ \begin{bmatrix} 1 & x_1 & x_1^2 & \ldots & x_1^p \\ 1 & x_2 & x_2^2 & \ldots & x_2^p \\ \vdots & \vdots & \vdots & \ddots & \vdots \\ 1 & x_n & x_n^2 & \ldots & x_n^p \end{bmatrix} \begin{bmatrix} \theta_0 \\ \theta_1 \\ \vdots \\ \theta_p \end{bmatrix} = \begin{bmatrix} y_1 \\ y_2 \\ \vdots \\ y_n \end{bmatrix} $$

Notice how we "linearized" our problem by applying nonlinear functions to our features. This is the basis of many "kernel methods" in machine learning.

Properties of the Vandermonde matrix¶

  • The Vandermonde matrix $\Phi$ is a square matrix of size $n\times p$, where $n$ is the number of datapoints and $p$ is one plus the degree of the polynomial that we want to fit. In this sense, the "features" of the model are just higher powers of existing features, making the features redundant.

  • If $p = n$, then the Vandermonde matrix is square and invertible, and the linear system has a unique solution via $\Phi^{-1}$. Notice how the Vandermond matrix always has full rank in this case, if the points $x_1,\ldots,x_n$ are all distinct. However, the matrix becomes singular if any of the datapoints are repeated.

  • However, if $p > n$, then the Vandermonde matrix is rectangular and the linear system is not guaranteed to have a unique solution. Conversely, if $p < n$, then the Vandermonde matrix is rank-deficient and the linear system is not guaranteed to have a solution. In this case, we can find the least-squares solution using the Moore-Penrose pseudoinverse $(\Phi^\top\Phi)^{-1}\Phi^\top$.

  • Important, as the number of points increases, the Vandermonde matrix becomes ill-conditioned, which degrades the accuracy of the solution.

In [145]:
xx = np.array([1, 2, 3]) # 3 data points

pvals = range(2, 20)
all_condition_numbers = []
for i in pvals:
    all_condition_numbers.append(np.linalg.cond(np.vander(xx, i, increasing=True)))

plt.plot(pvals, all_condition_numbers)
plt.xlabel('Polynomial degree at fixed data quantity')
plt.ylabel('Condition number')
Out[145]:
Text(0, 0.5, 'Condition number')
No description has been provided for this image

How can we interpret this effect?¶

Let's try defining a data matrix with $N_\text{data}=2$. What do the column vectors of a high-degree Vandermonde matrix look like?

In [146]:
xx = np.array([1.0, 2.0]) # 2 data points

phi = np.vander(xx, 10, increasing=True)

phi /= np.linalg.norm(phi, axis=0, keepdims=True)
In [147]:
def plot_vector(vec, **kwargs):
    plt.plot([0, vec[0]], [0, vec[1]], **kwargs)

plt.figure(figsize=(6, 6))
plot_vector(phi[:, 0], color='k', label='First column')
plot_vector(phi[:, 1], color='r', label='Second column')
plt.title("First two columns of the Vandermonde matrix")


plt.figure(figsize=(6, 6))
plot_vector(phi[:, -2], color='k', label='First column')
plot_vector(phi[:, -1], color='r', label='Second column')
plt.title('Last two columns')

# plot with color gradient
plt.figure(figsize=(6, 6))
for i in range(10):
    plot_vector(phi[:, i], color=plt.cm.viridis(i / 10))
plt.title('All columns')
Out[147]:
Text(0.5, 1.0, 'All columns')
No description has been provided for this image
No description has been provided for this image
No description has been provided for this image
In [38]:
plt.imshow(phi)
plt.xlabel('Power index')
plt.ylabel('Datapoint index')
Out[38]:
Text(0, 0.5, 'Datapoint index')
No description has been provided for this image

The largest element of our data vector $x$ begins to dominate at higher powers of $x$, causing the column vectors to become more and more similar to each other, and resulting in the least-squares problem becoming ill-conditioned.

Nothing comes for free! If we don't have sufficient features or measurement channels, we can't always just make up new ones as functions of our existing features. Eventually, redundancy catches up with us. We can't convert an underdetermined problem to an overdetermined problem by adding redundant features.

In [ ]:
In [ ]:

Residual Scatter: Determining model complexity without looking at the test dataset¶

  • Although fitting a linear model does not work well, quadratic or cubic polynomials seem to improve the fit to both the training and test data. Increasing the model expressivity therefore seems to improve the model's ability to fit the training data, and generalize to unseen test data.

  • We can also assess whether a given model is underfitting by plotting the residuals, which are the differences between the predicted values and the true values. If the residuals are not random, then the model is underfitting.

    If the true values are $y$ and the predicted values are $\hat{y}$, then the residuals are $y - \hat{y}$. The reason we expect uniform scatter is that our linear regression model can be seen as defining a data-generating process of the form

    $$ y = \theta^\top \phi(x) + \epsilon $$

    where $\epsilon$ is a random variable with zero mean and constant variance. The residuals are therefore given by

    $$ y - \theta^\top \phi(x) = \epsilon $$

In [148]:
## Plot residuals for each model
plt.figure(figsize=(14, 5))
for i in range(len(degrees)):
    ax = plt.subplot(1, len(degrees), i + 1)

    polynomial_features = PolynomialFeatures(degree=degrees[i])
    linear_regression = LinearRegression()
    pipeline = Pipeline([("pf", polynomial_features), ("lr", linear_regression)])
    pipeline.fit(X_train[:, None], y_train)

    ax.plot(X_train, y_train - pipeline.predict(X_train[:, None]), '.b', markersize=10, label="Samples")
    ax.set_xlim((0, 1))
    ax.set_ylim((-2, 2))
    ax.legend(loc="best")
    ax.set_title("Residuals for Degree {}".format(degrees[i]))
    plt.xlabel("X")
    plt.ylabel("Residuals (y - y_pred)")

    # plt.fi
No description has been provided for this image

We can see one heuristic for determining whether we have chosen a sufficiently-expressive model: Uniform scatter in the residuals

Hypothetically, we want to view our data generating process as comprising a deterministic function $f$ and a random noise term $\epsilon$. We want to fit a model that is close to $f$ and that is able to capture everything except the variability in $\epsilon$.

$$ y_i = f(x_i) + \epsilon_i $$

where $f(x_i) = \theta_0 + \theta_1 x_i + ...$ and $\epsilon_i$ is a random variable with mean 0 and variance $\sigma^2$. When we compute our residuals, we are computing the difference between the true values $y_i$ and our model's predictions $\hat{y}_i = f(x_i)$. $$ r_i = y_i - f(x_i) $$

Thus we want to $r_i$ to look like a zero-centered random distribution, consistent with our implicit model of the generating process for this dataset.

In [ ]:
In [ ]:
In [ ]:
In [ ]:

What happens when our model complexity is too high?¶

  • Increase the degree of our polynomial improved our fit accuracy by producing a model that explained more of the variance in the data.
  • Our residuals appeared more uniform as well, suggesting that our model stopped underfitting

What happens if we further increase the degree of the polynomial?

Runge's phenomenon: can fit an $N$-point dataset perfectly with a polynomial of degree $N$.

In [149]:
degrees = [30]
plt.figure(figsize=(10, 6))
for i in range(len(degrees)):
    ax = plt.subplot(1, len(degrees), i + 1)

    polynomial_features = PolynomialFeatures(degree=degrees[i])
    linear_regression = LinearRegression()
    pipeline = Pipeline([("pf", polynomial_features), ("lr", linear_regression)])
    pipeline.fit(X_train[:, None], y_train)

    y_pred_test = pipeline.predict(X_test[:, None])

    ax.plot(X_test, y_test, color='k', label="True Test Values")
    ax.plot(X_test, y_pred_test, label="Predicted Test Values")
    ax.plot(X_train, y_train, '.b', markersize=10, label="Train Values")
    ax.set_xlim((0, 1))
    ax.set_ylim((-2, 2))
    ax.legend(loc="best")
    ax.set_title("Polynomial of Degree {}".format(degrees[i]))
No description has been provided for this image

Let's quantify this effect¶

In [150]:
print(f"Train R2 Score (Degree {degrees[i]}): {pipeline.score(X_train[:, None], y_train)}")
print(f"Test R2 Score (Degree {degrees[i]}): {pipeline.score(X_test[:, None], y_test)}")

Train R2 Score (Degree 30): 0.9950194388972539
Test R2 Score (Degree 30): -86515.89762356045
In [ ]:

Model complexity¶

  • This is a nebulous concept, in machine learning. In principle, it's a function of the number of trainable parameters in a model

  • However, we've seen before that regularizers and constraints can reduce the effective number of degrees of freedom, and that not all parameter combinations are "reachable" during training.

  • Nonetheless, we'll treat the number of parameters as an upper bound on the complexity of a model.

  • Other measures of complexity include the VC dimension, the Rademacher complexity, and the margin of a classifier.

Plotting train/test error vs. model complexity¶

  • Usually, model complexity is controlled by a hyperparameter, such as the degree of a polynomial, the number of layers in a neural network, the number of trees in a random forest, or the strength of a regularizer.

  • We can see how the training versus validation error changes as we vary the hyperparameter, to see how overfitting emerges.

  • By convention, we normally plot error instead of accuracy, so that the error is always decreasing as the model improves. In this case, we will record $1 - R^2$ as our error metric.

In [152]:
## Plot train and test error versus model size
from sklearn.metrics import r2_score

degrees = range(1, 21)
train_errors = []
test_errors = []
for degree in degrees:
    polynomial_features = PolynomialFeatures(degree=degree,)
    linear_regression = LinearRegression()
    pipeline = Pipeline([("pf", polynomial_features), ("lr", linear_regression)])
    pipeline.fit(X_train[:, None], y_train)

    y_pred_train = pipeline.predict(X_train[:, None])
    y_pred_test = pipeline.predict(X_test[:, None])

    train_errors.append(1 - r2_score(y_train, y_pred_train))
    test_errors.append(1 - r2_score(y_test, y_pred_test))

plt.figure(figsize=(6, 6))
plt.semilogy(degrees, train_errors, label='Train error')
plt.semilogy(degrees, test_errors, label='Test error')
plt.legend(loc='best')
plt.xlabel('Model complexity (polynomial degree)')
plt.ylabel('Mean Squared Error')
Out[152]:
Text(0, 0.5, 'Mean Squared Error')
No description has been provided for this image

Looking at this graph, we can see several patterns

  • The training error decreases as the model complexity increases. This is because the model is able to fit the training data more closely as it becomes more complex.

  • The test error initially decreases as the model complexity increases, as the model reaches a model class that is able to fit the data more closely.

  • The test error then increases as the model complexity increases further. This is because the model is overfitting to the training data, and is not able to generalize to the test data.

We'd say that the best model is the one that minimizes the test error.¶

In [ ]:

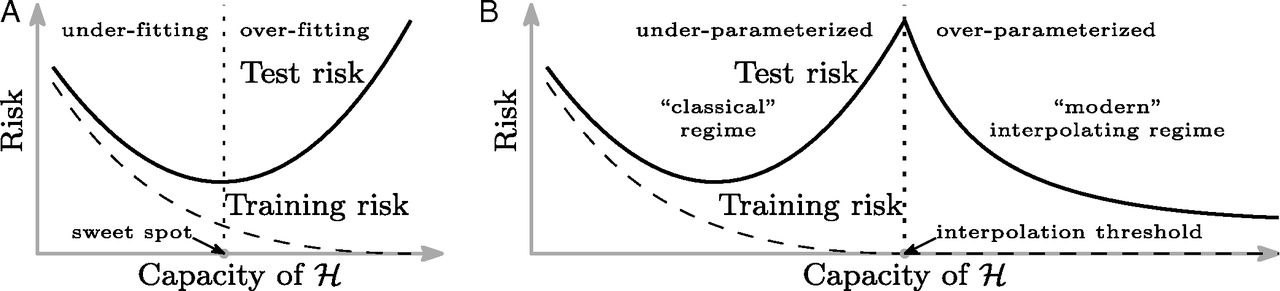

The Bias-Variance Tradeoff¶

Overfitting¶

  • A very expressive model (e.g., a high degree polynomial) fits the training dataset perfectly.

  • But the model makes highly incorrect predictions outside this dataset, and doesn't generalize.

  • We would say that the overfit model exhibits high variance in its score across different hypothetical testing sets

  • We could also say that the model has low bias because it will fit any training data very well.

Underfitting¶

  • A small model (e.g. a straight line), will not fit the training data well.

  • Therefore, it will also not be accurate on new data.

  • The model will, however, exhibit low variance in its error on random testing sets.

  • We say that it has high bias due to its strong tendency to do a limited number of things.

In [ ]:

Determining Overfitting vs. Underfitting¶

We can diagnose overfitting and underfitting by measuring performance on a the held out test dataset (not used for training).

  • If training perforance is high but holdout performance is low, we are overfitting.

  • If training perforance is low but holdout performance is low, we are underfitting.

As we've seen previously, the gap between train and test scores is one measure of overfitting. The larger the gap, the more overfitting.

How do we choose the correct model complexity? For our polynomial example, $p$ is a hyperparameter. We need to tune it on a validation set, or run cross-validation on our training partition

In [154]:
degrees = [1, 20, 5]
titles = ['Underfitting', 'Overfitting', 'A Good Fit']
plt.figure(figsize=(14, 5))
for i in range(len(degrees)):
    ax = plt.subplot(1, len(degrees), i + 1)

    polynomial_features = PolynomialFeatures(degree=degrees[i])
    linear_regression = LinearRegression()
    pipeline = Pipeline([("pf", polynomial_features), ("lr", linear_regression)])
    pipeline.fit(X_train[:, None], y_train)

    y_pred_test = pipeline.predict(X_test[:, None])

    ax.plot(X_test, y_test, color='k', label="True Test Values")
    ax.plot(X_test, y_pred_test, label="Predicted Test Values")
    ax.plot(X_train, y_train, '.b', markersize=10, label="Train Values")

    ax.set_xlim((0, 1))
    ax.set_ylim((-2, 2))
    ax.legend(loc="best")
    ax.set_title("{} (Degree {})".format(titles[i], degrees[i]))
No description has been provided for this image

How to Fix Underfitting¶

  • Feature engineering: find better features that will make the dataset easier to fit.

  • Pick a more expressive model class (random forests or neural networks instead of linear models).

  • Pick an optimization algorithm that can find better parameters (SGD instead of gradient descent).

How to Fix Overfitting¶

  • Use a simpler model class (a linear model instead of a neural net)

  • Use fewer trainable parameters (a smaller neural net)

  • Keep the same model, but collect more training data

  • Regularization: modify the training process to penalize overly complex models.

In [ ]:
In [ ]:
In [ ]:

Regularization¶

  • We will try applying L2 or Ridge regularization to our polynomial regression model.

  • We will also calculate the accuracy on the training set and the test set. We will again use the coefficient of determination $R^2$ as our metric.

  • Why are we using L2 regularization instead of L1 (Lasso)?

L2 Regularization for Polynomial Regression¶

Let's consider an application to the polynomial model we have seen so far. Given polynomial features $\phi(x)$, we optimize the following objective:

$$ J(\theta) = \frac{1}{2n} \sum_{i=1}^n \left( y^{(i)} - \theta^\top \phi(x^{(i)}) \right)^2 + \frac{\lambda}{2} \cdot ||\theta||_2^2. $$

In [156]:
from sklearn.linear_model import Ridge
from sklearn.metrics import r2_score

lambda_values = [1e-14, 1e-8, 1e-6, 1e-3, 1e-1, 1e0, 1e1]

all_train_errors = []
all_test_errors = []

plt.figure(figsize=(10, 25))
for i, lambda_value in enumerate(lambda_values):
    ax = plt.subplot(len(lambda_values), 1, i + 1)
    polynomial_features = PolynomialFeatures(degree=20)
    linear_regression = Ridge(alpha=lambda_value)
    pipeline = Pipeline([("pf", polynomial_features), ("lr", linear_regression)])
    pipeline.fit(X_train[:, None], y_train)

    y_pred_train = pipeline.predict(X_train[:, None])
    y_pred_test = pipeline.predict(X_test[:, None])

    score_train = 1 - r2_score(y_train, y_pred_train)
    score_train = np.mean((y_train - y_pred_train) ** 2)
    all_train_errors.append(1 - score_train)
    score_test = 1 - r2_score(y_test, y_pred_test)
    score_test = np.mean((y_test - y_pred_test) ** 2)
    all_test_errors.append(1 - score_test)

    ax.plot(X_test, y_test, color='k', label="True function")
    ax.plot(X_test, y_pred_test, label="Model")
    ax.plot(X_train, y_train, '.b', markersize=10, label="Sampled")
    ax.set_xlim((0, 1))
    ax.set_ylim((-2, 2))
    ax.legend(loc="best")

    ax.set_title(f"Order {20}, Regularization {lambda_value}, R^2: {(score_train):.4f}")
